tri-zero/Mods/hbo/ServoKlicky

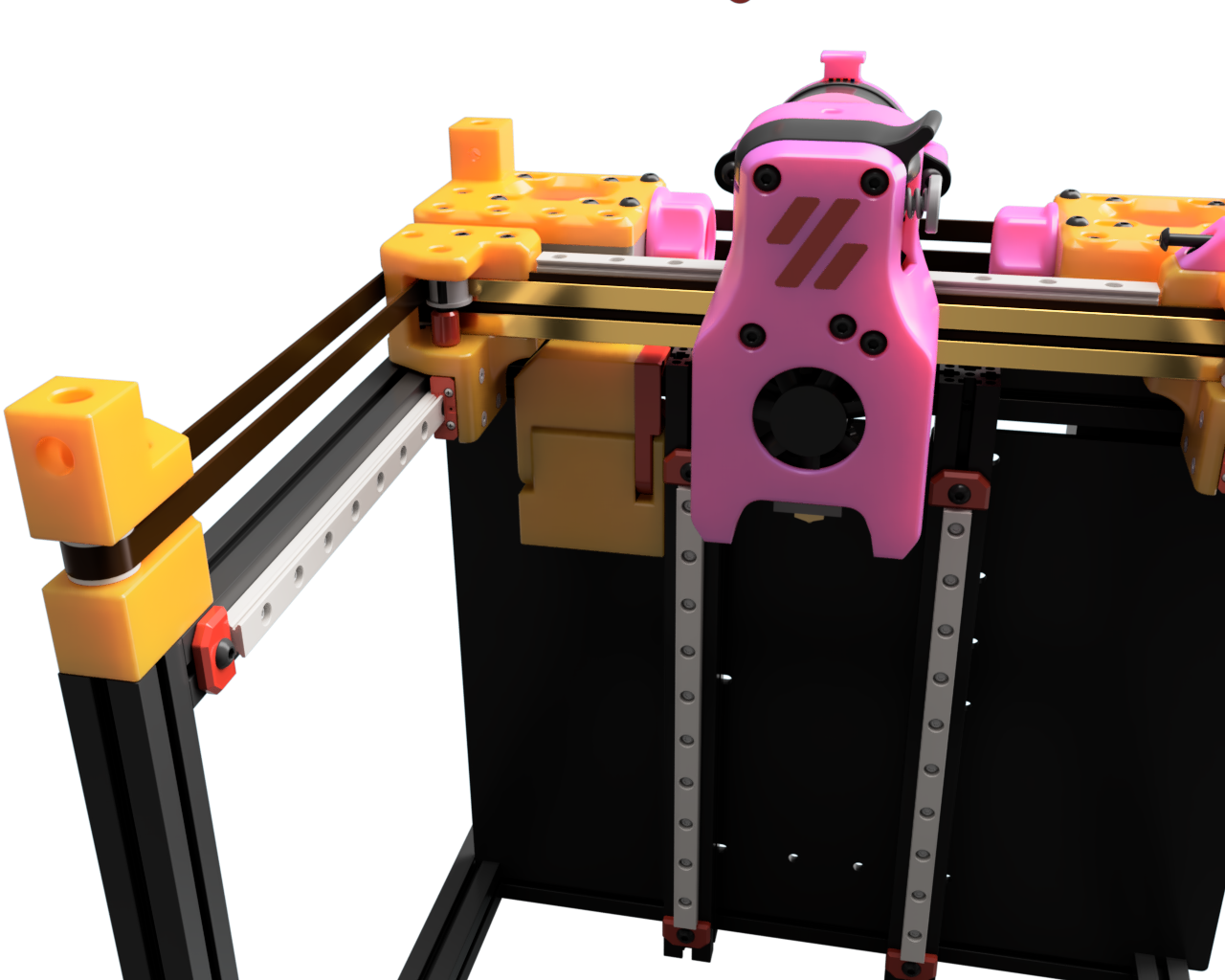

Servo Powered Docks for the V0 and Variants

Curently in alpha stage

Parts have been printed but not yet tested on a printer (im still in the prozess of bulding a V0 to test this)

Printing

All parts print with standard Voron print setting without any supports.

BOM Notes

Part	Qty	Notes

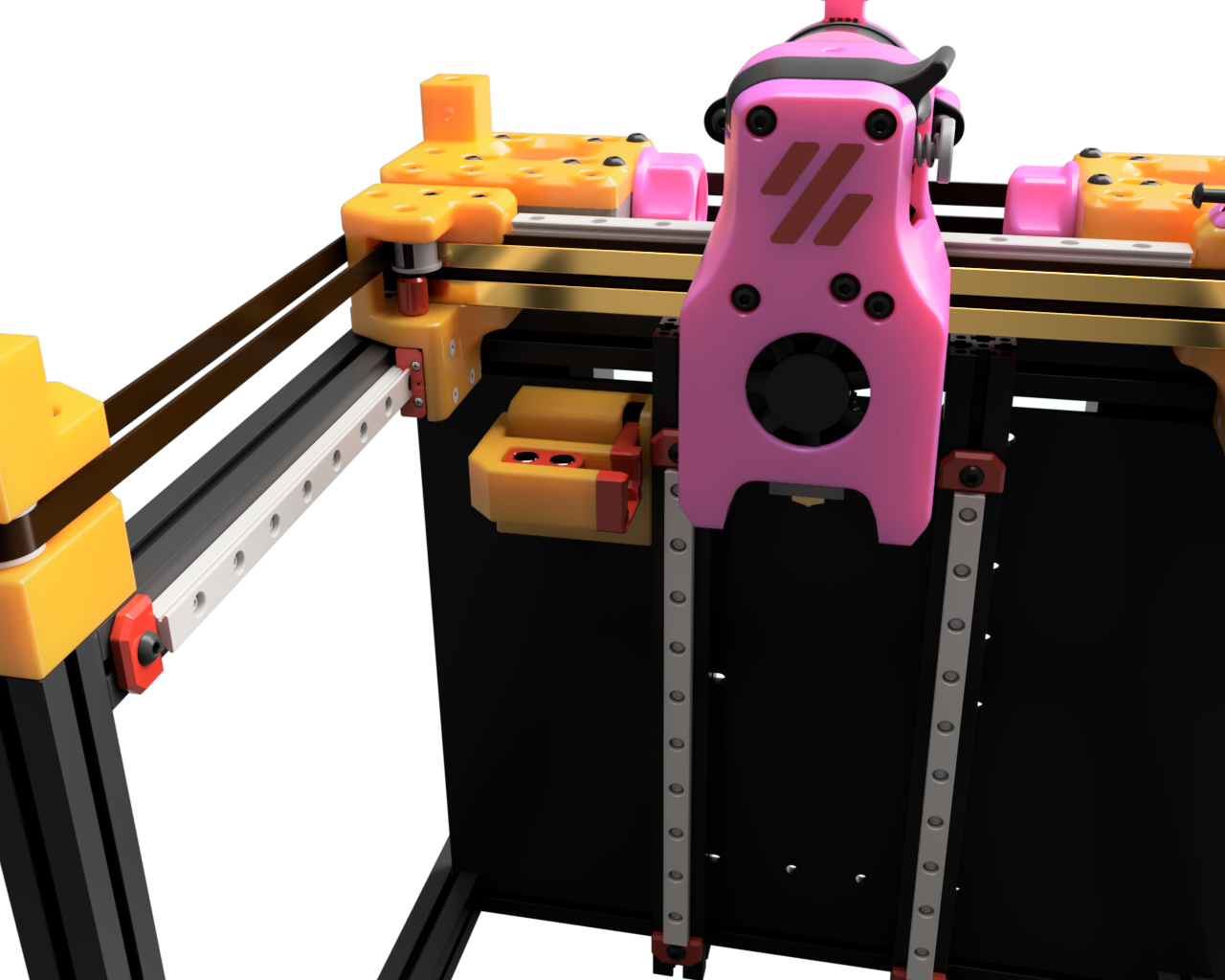

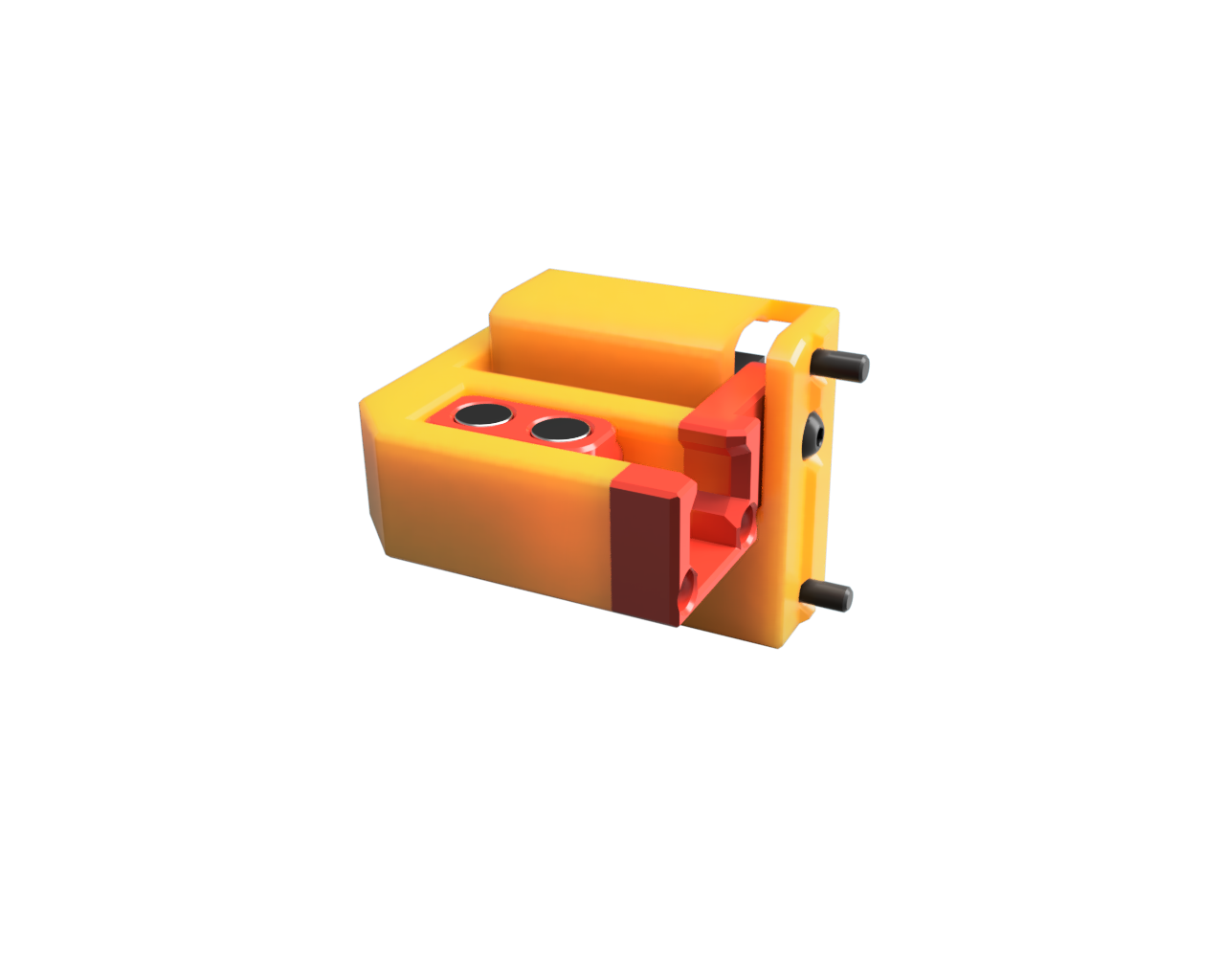

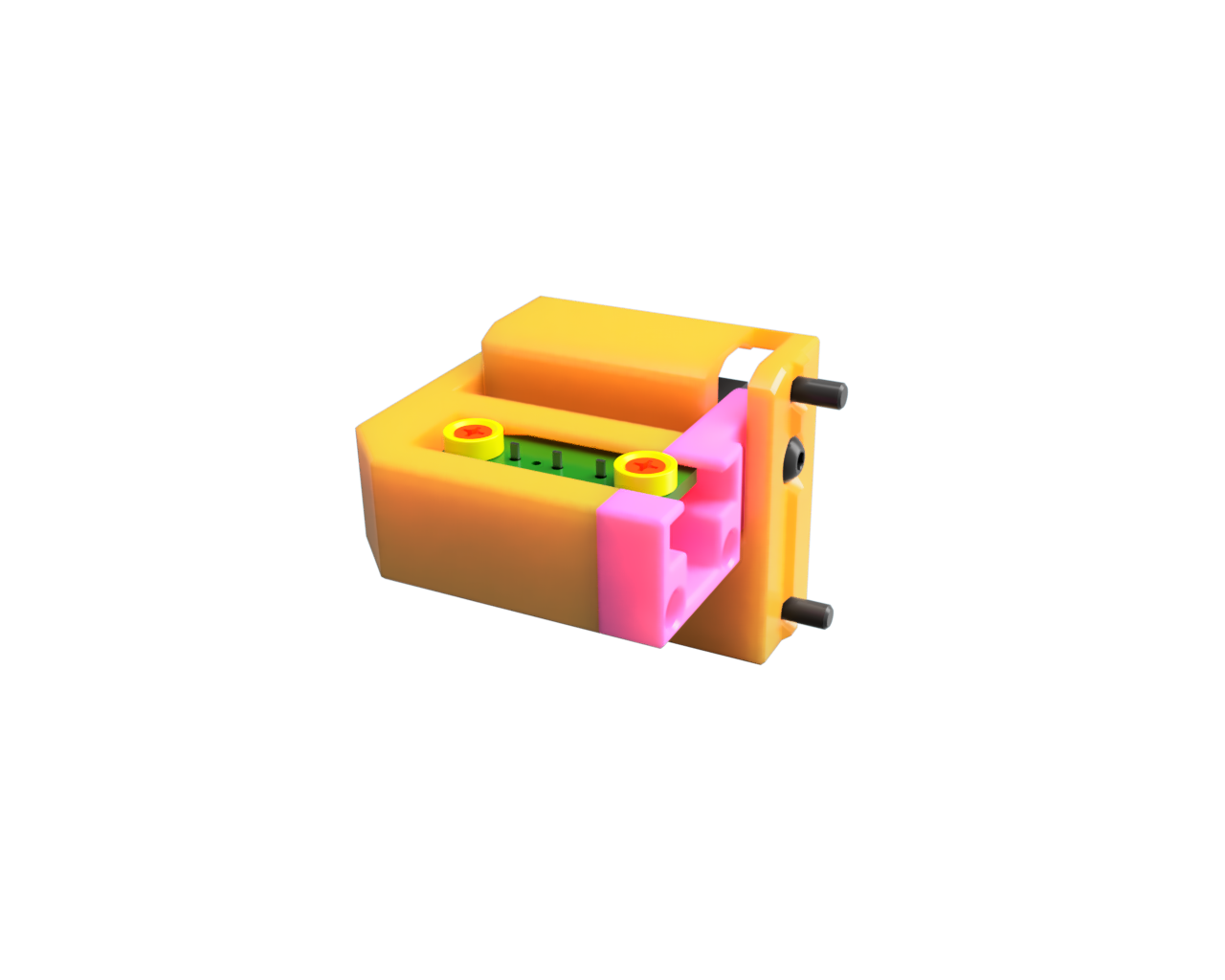

Probe	Zero-Click or euklid	As of yet there is no mount for the euklid on the toolhead (upcomming)
-	-	-

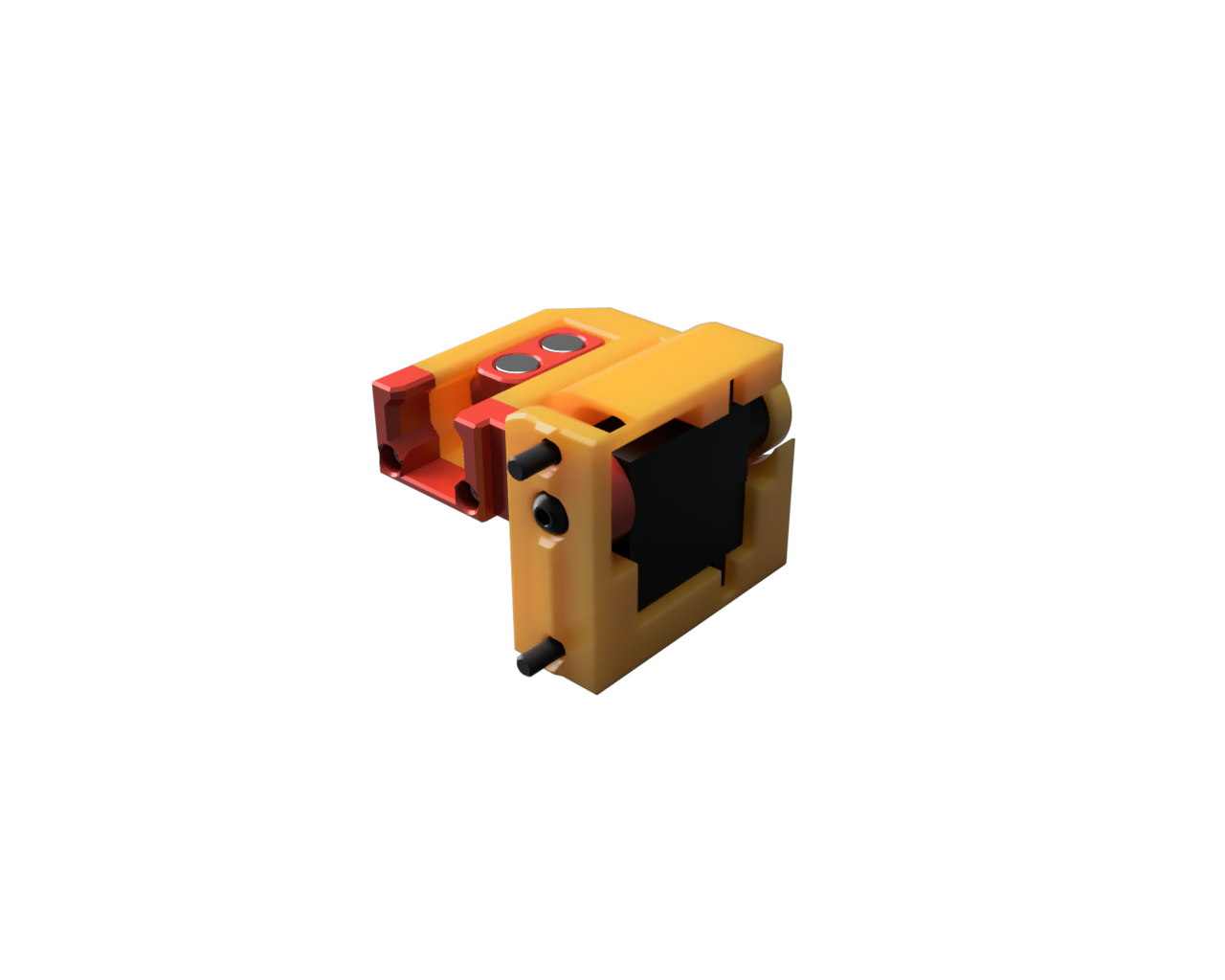

Servo	1	MG90S - Same as for the ECRF
-	-	-
M3 x 6	1	Pivot point for the main dock
M3 x 6	1	To mount the servo base to the z-extrusion (top)
M3 x 35	1	To mount the servo base to the z-extrusion (bottom)
		note that the mounting hole of the servo needs to enlarged to 3mm
M2 x 10 self tapping	2	for the dock assembly
M3 Insert	1	Pivot point mount - use some locktite here

CAD Notes

The CAD includes all variants in one file. You need to show/hide the version you like to work with

Also note the Joints (Rotation and sliders) to animate and test the movements
