Servo Powered Docks for the V0 and Variants

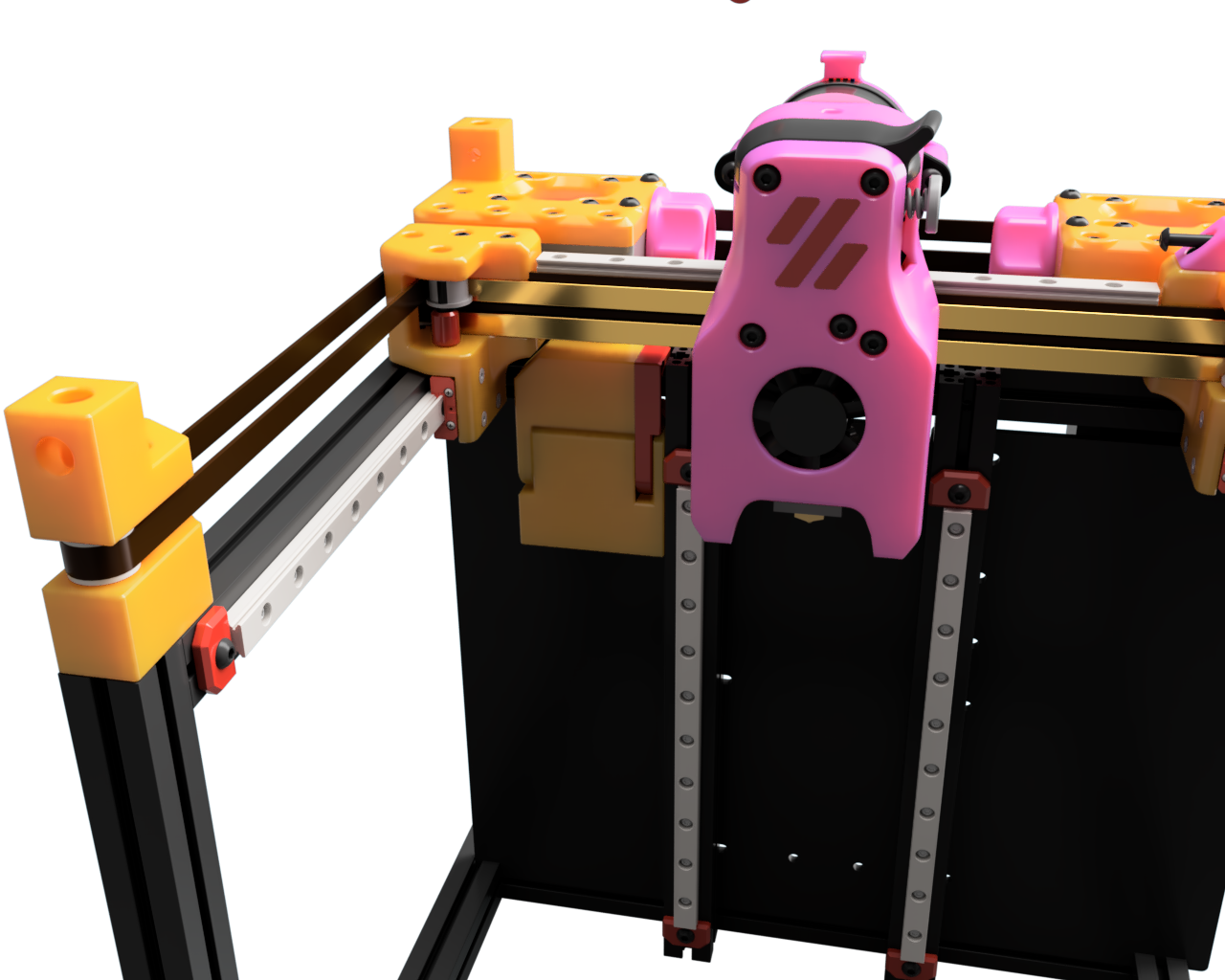

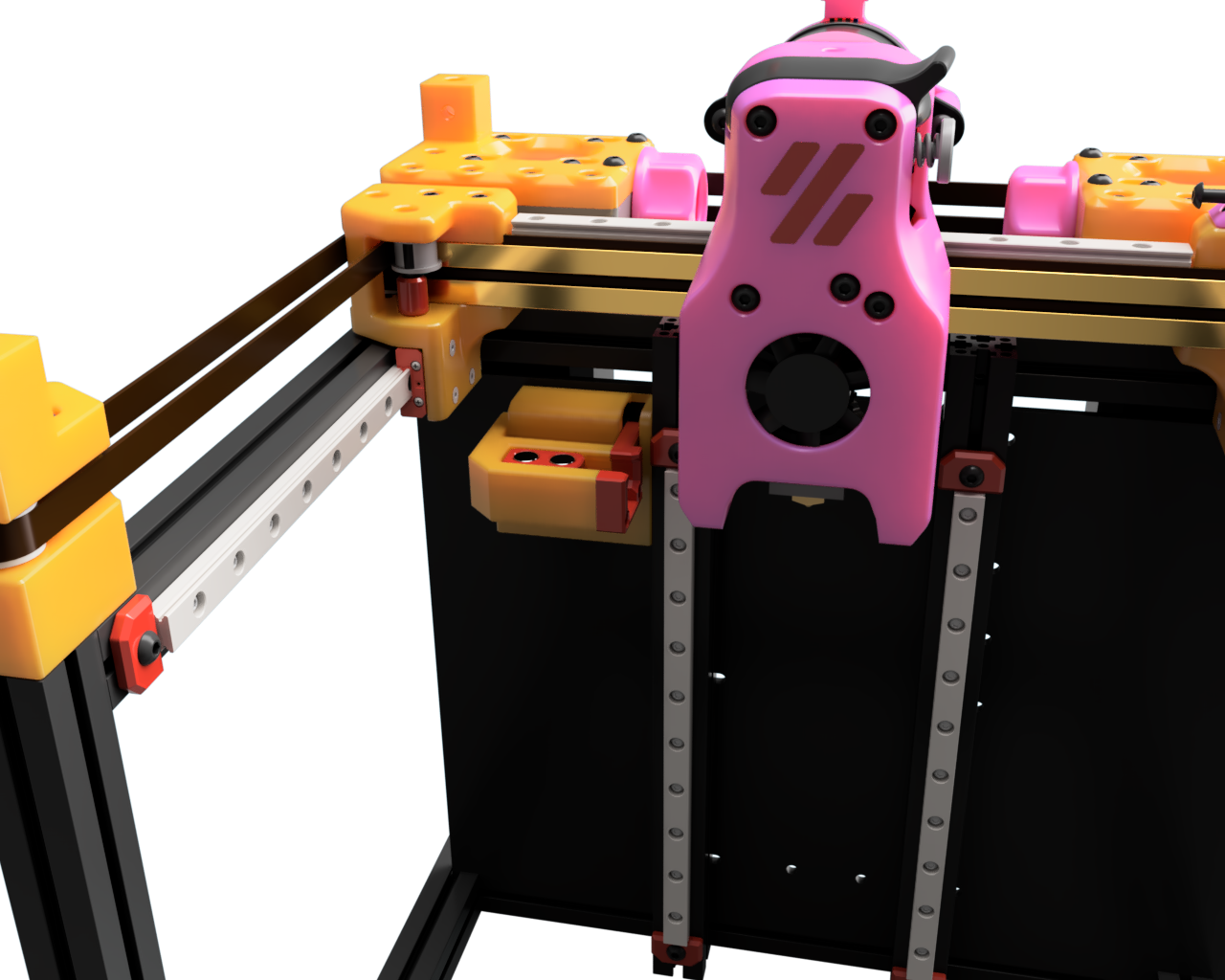

This as a mount for the z-probe that mooves the probe and dock out of the way while printing. Therfore there is no loss on print volume !
Curently in alpha stage
Parts have been printed but not yet tested on a printer (im still in the prozess of bulding a V0 to test this)
https://user-images.githubusercontent.com/1899323/218826318-dd8349b1-3cd3-4b2f-90a4-cacaf3864f00.mp4
Printing
All parts print with standard Voron print setting without any supports.
BOM Notes
| Part | Qty | Notes |
|---|---|---|

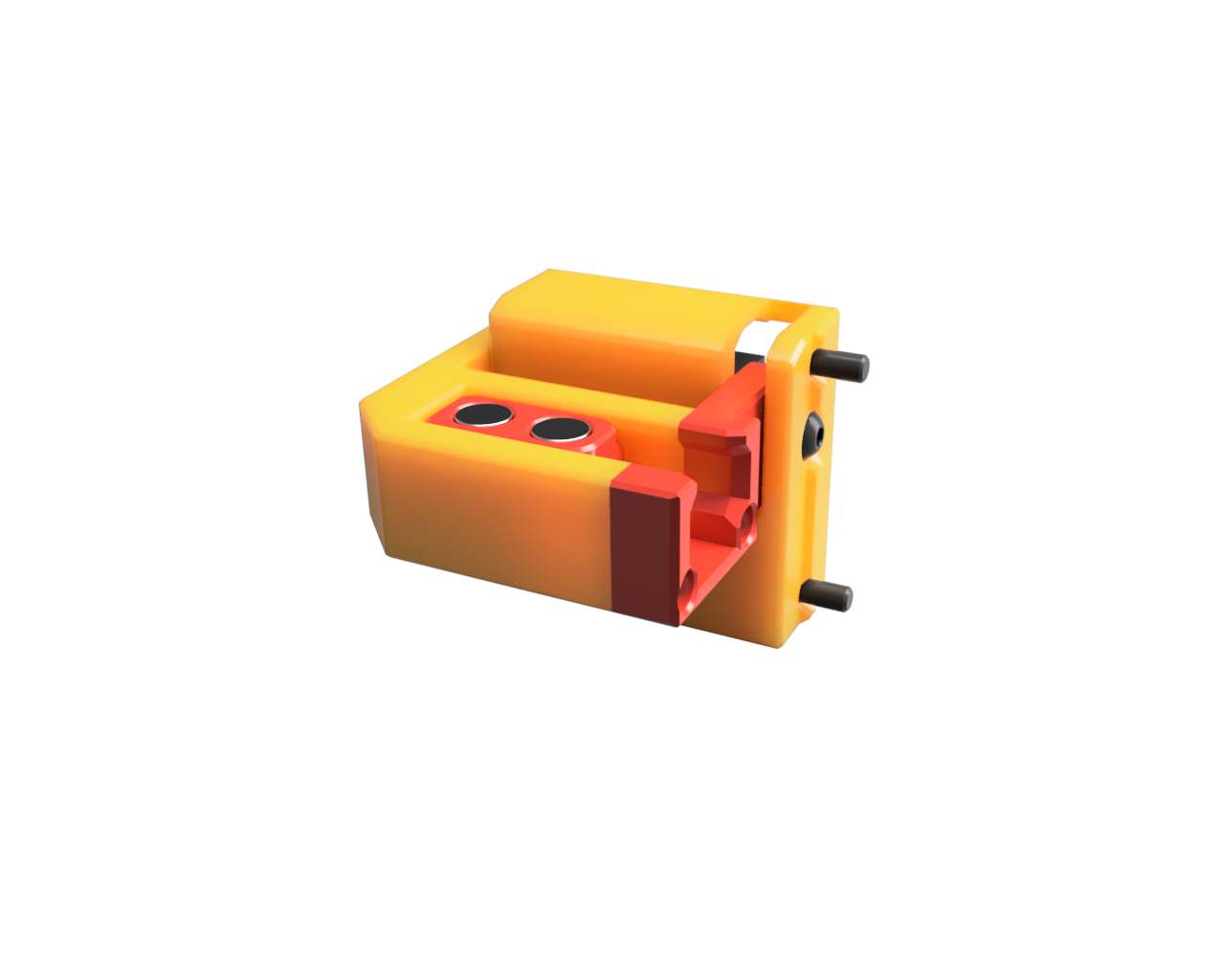

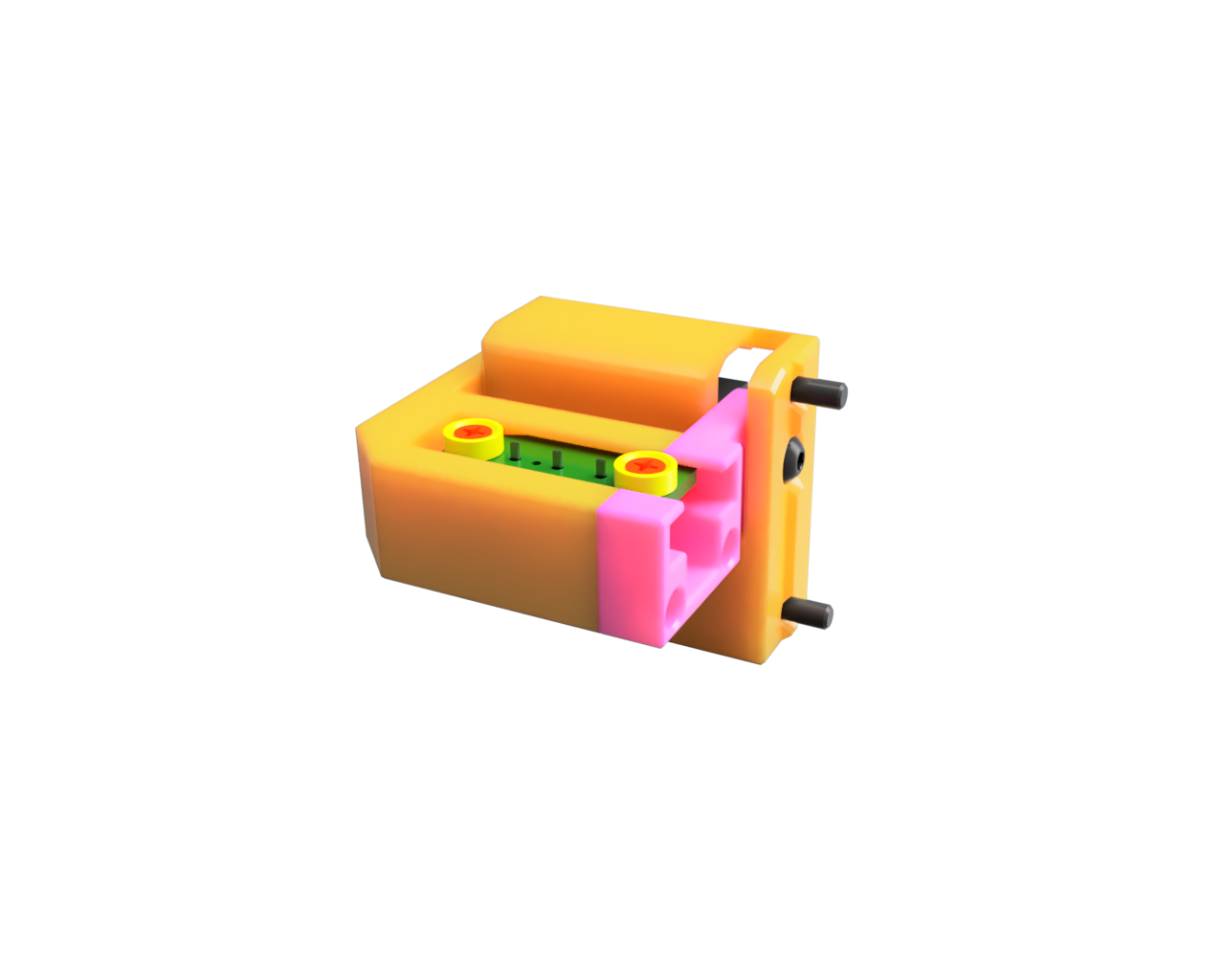

| Probe | Zero-Click or euklid | As of yet there is no mount for the euklid on the toolhead (upcomming) |
| - | - | - |

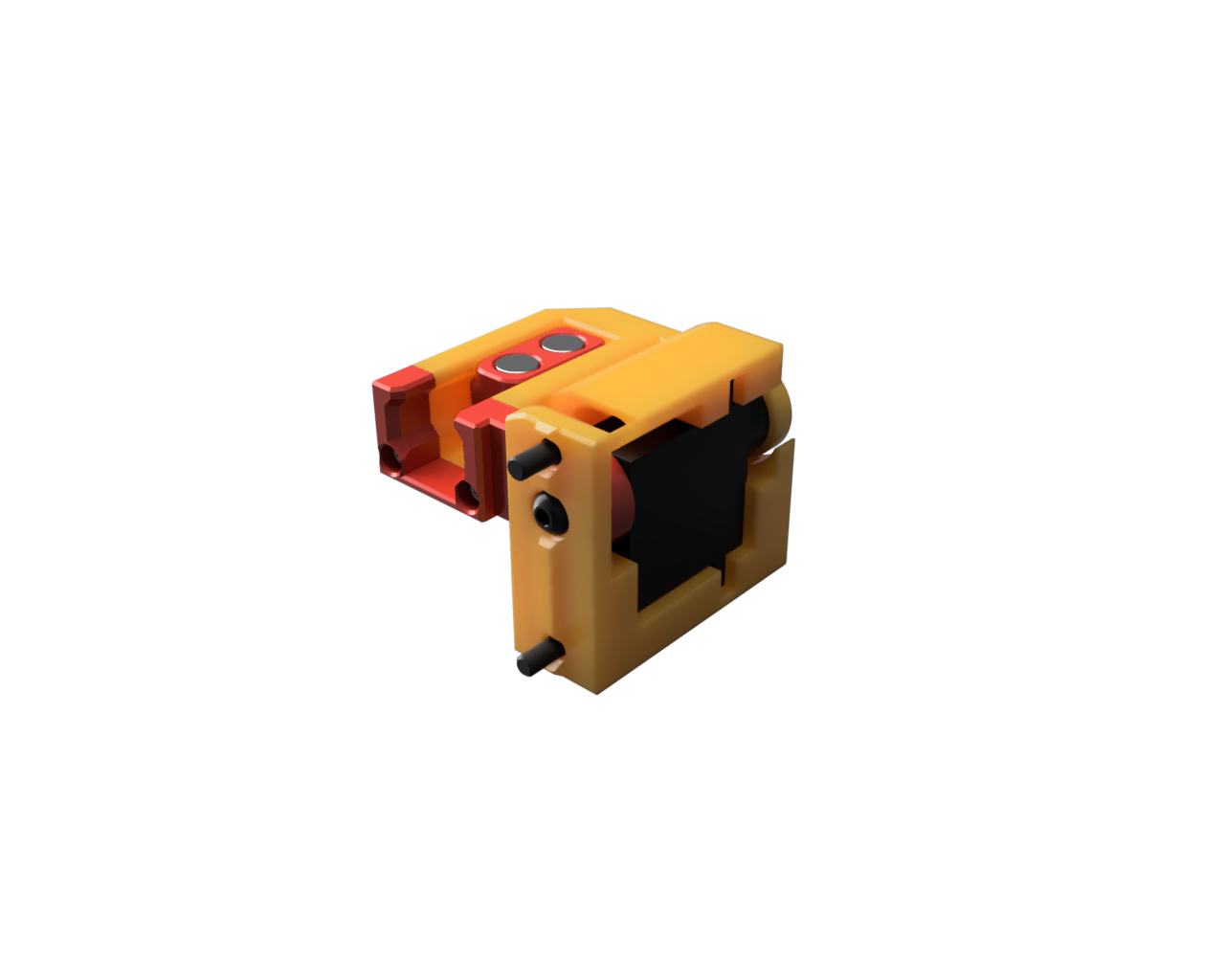

| Servo | 1 | MG90S - Same as for the ECRF |
| - | - | - |
| M3 x 6 | 1 | Pivot point for the main dock |
| M3 x 6 | 1 | To mount the servo base to the z-extrusion (top) |
| M3 x 35 | 1 | To mount the servo base to the z-extrusion (bottom) |
| note that the mounting hole of the servo needs to enlarged to 3mm | ||
| M2 x 10 self tapping | 2 | for the dock assembly |
| M3 Insert | 1 | Pivot point mount - use some locktite here |
CAD Notes
The CAD includes all variants in one file. You need to show/hide the version you like to work with
Also note the Joints (Rotation and sliders) to animate and test the movements
