Servo Powered Docks for the V0 and Variants
This as a mount for the z-probe that move’s the probe and dock out of the way while printing. Therefore there is no loss on print volume !
https://user-images.githubusercontent.com/1899323/218826318-dd8349b1-3cd3-4b2f-90a4-cacaf3864f00.mp4

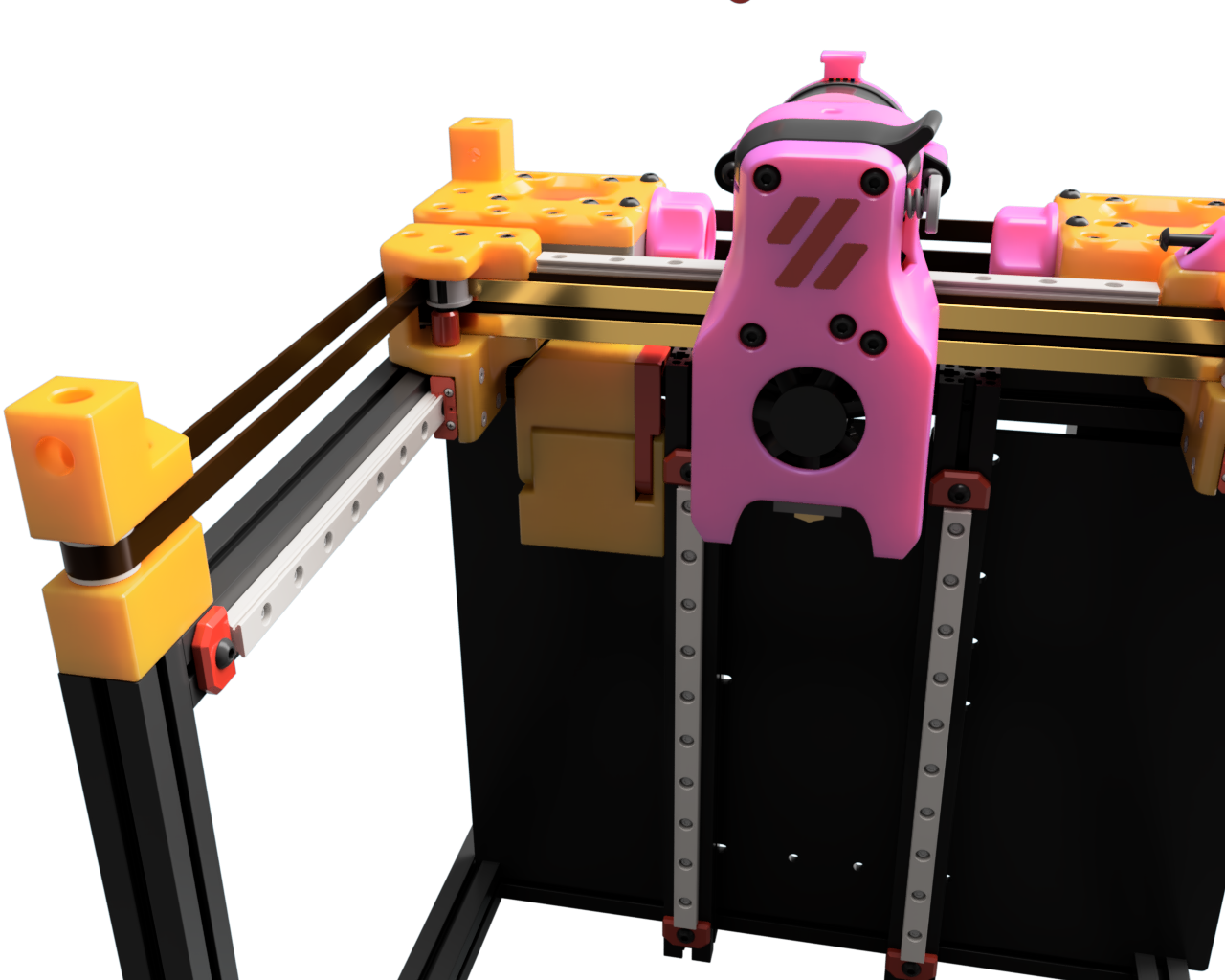

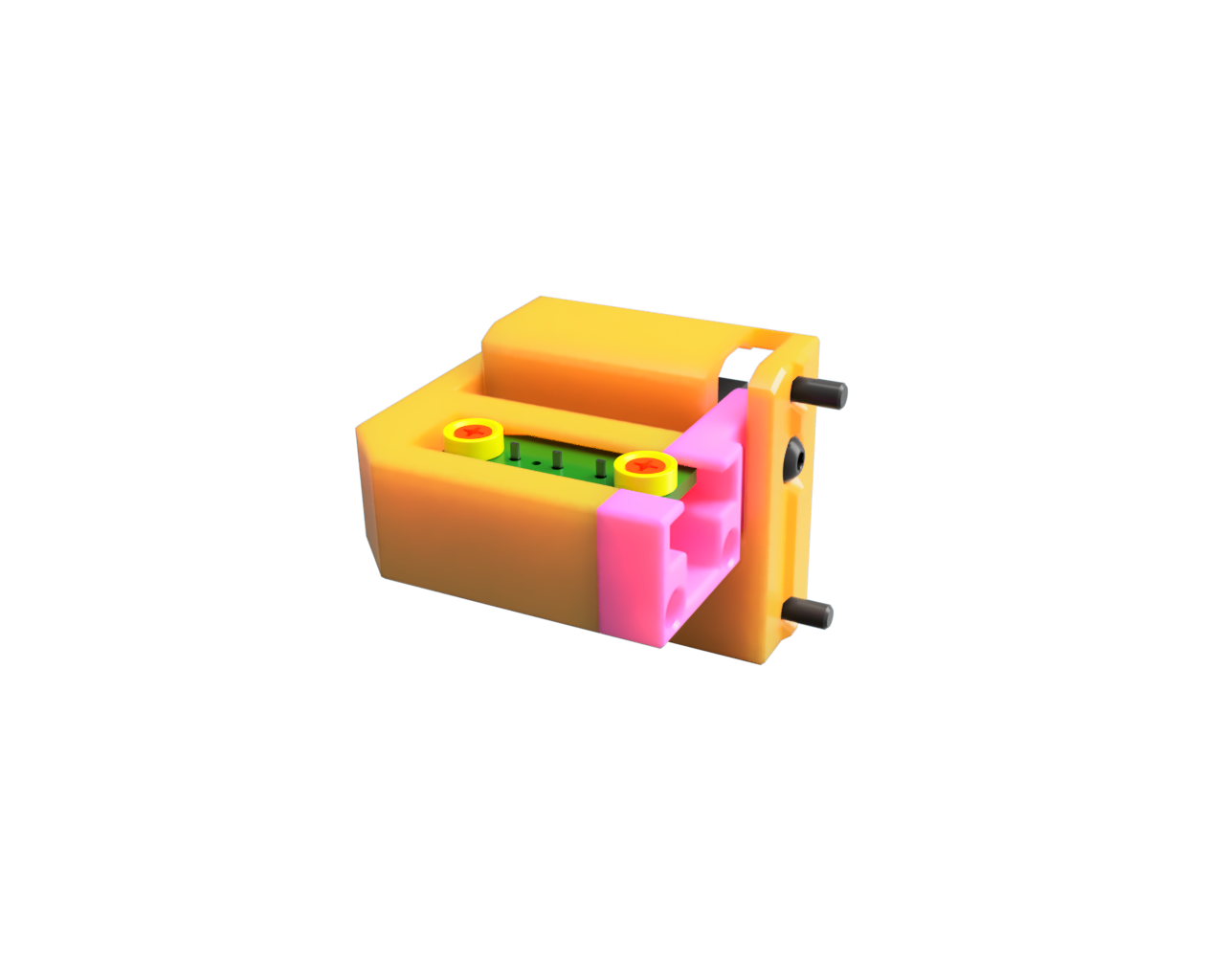

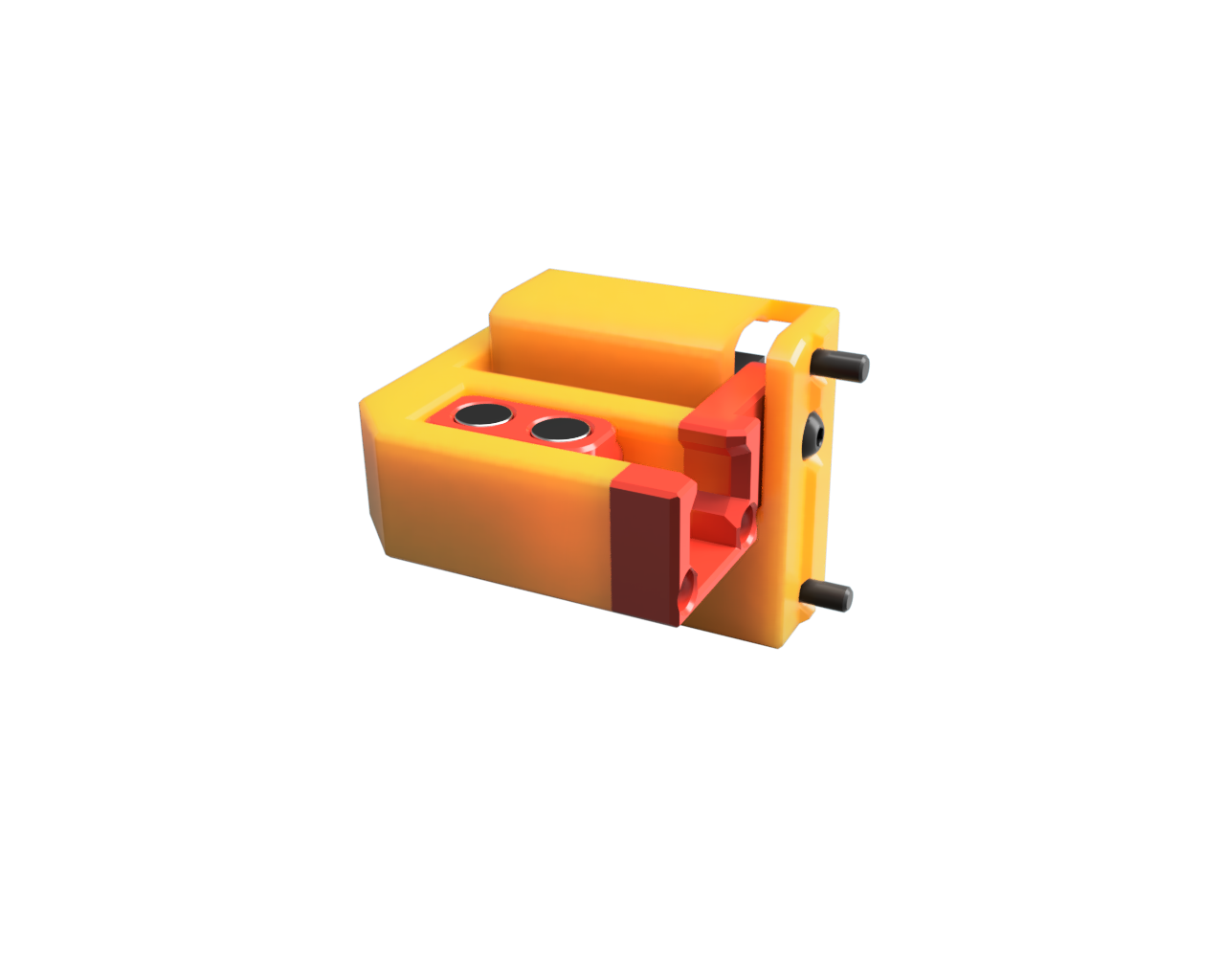

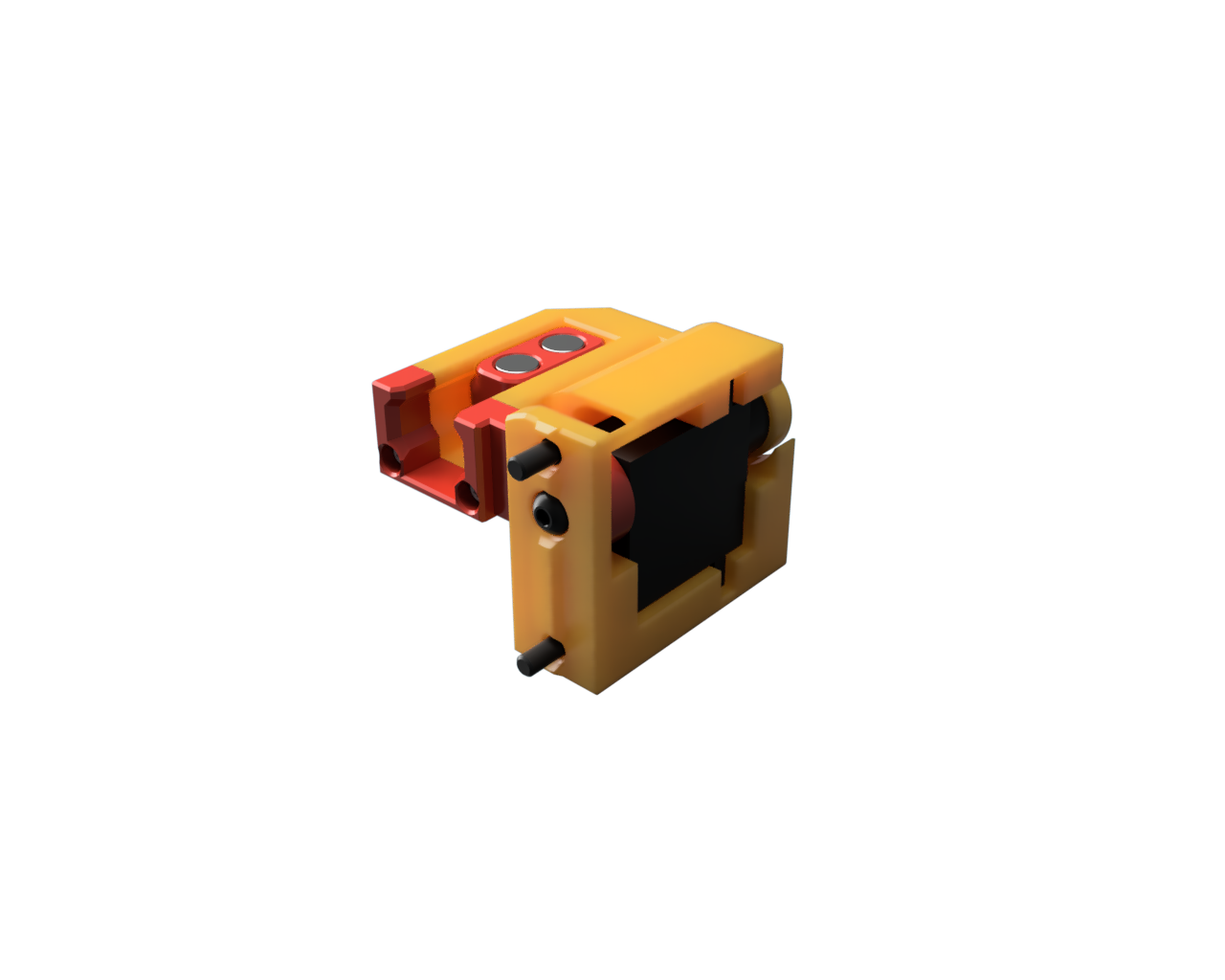

Renders
Printing
All parts print with standard Voron print setting without any supports.
BOM Notes
| Part | Qty | Notes |
|---|---|---|
| Probe | Zero-Click or euklid | Tested on my Ghost LG toolhead |
| - | - | - |
| Servo | 1 | MG90S - Same as for the ECRF |
| - | - | - |
| M3 x 6 | 1 | Pivot point for the main dock |
| M3 x 6 | 1 | To mount the servo base to the z-extrusion (top) |
| M3 x 35 | 1 | To mount the servo base to the z-extrusion (bottom) |
| note that the mounting hole of the servo needs to enlarged to 3mm | ||
| M2 x 10 self-tapping | 2 | for the dock assembly |
| M3 Insert | 1 | Pivot point mount - use some Loctite here |
Firmware
There are some configuration files and snippets in the firmware folder. They are based on a Euklid probe mounted to a Ghost LG Toolhead. So physical dimensions need to be adjusted to your setup.
WARNING: while configuring your printer make sure that you don't run any z-homing routines with the probe or dock deployed. It will likely kill your probe mount and maybe the servo gears (if you don't use a servo with metal gears) (Don't ask me how i know)
CAD Notes
The CAD includes all variants in one file. You need to show/hide the version you like to work with
Also note the Joints (Rotation and sliders) to animate and test the movements
Changelog
14.02.23
- multiple minor updates to get the servo movfe more freely
- CAD und STL^s updated
