trizero-plus50-mod

A buildlog of Tri-Zero Plus50 project with my little modifications

Based on tri-zero project from zruncho3d.

A/B drives changed to Nema17

Front view

Thanks @TheMrFish for this mod.

Added hardware endstops to all Z belts

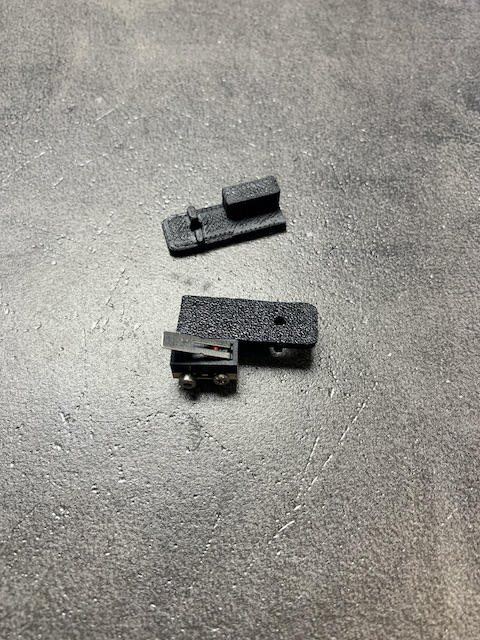

Z endstops Mounted Z endstop

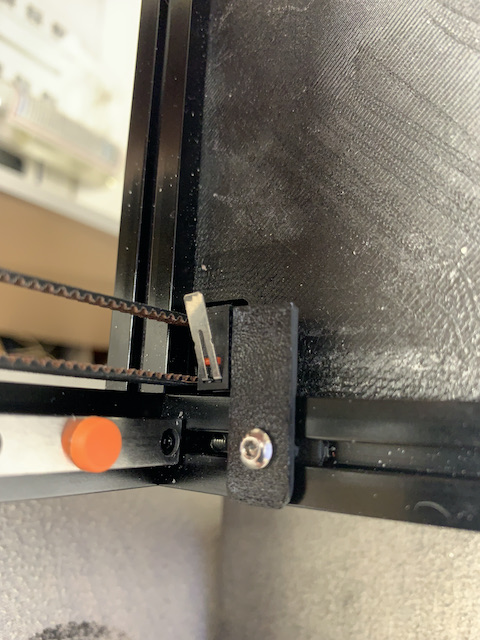

Setup cheap 180x180 hotbed from Maccurat

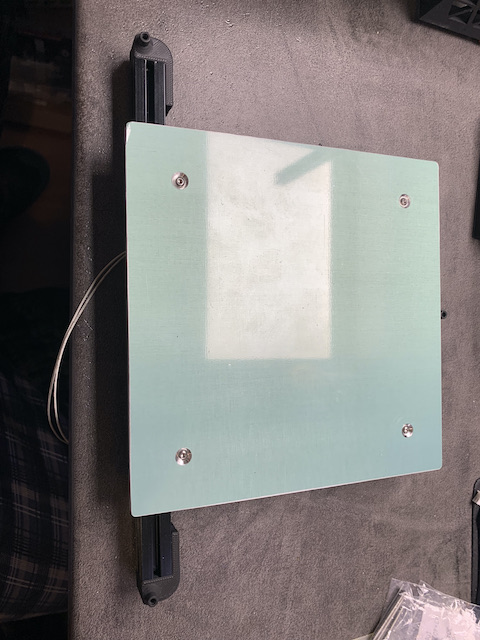

Bed mount Maccurat hotbed Assembled hotbed

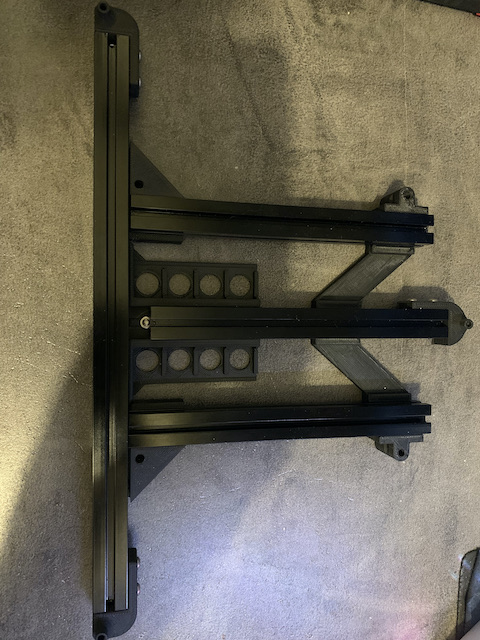

Two additional 150mm extrusion need for this mount.

Printed extrusion

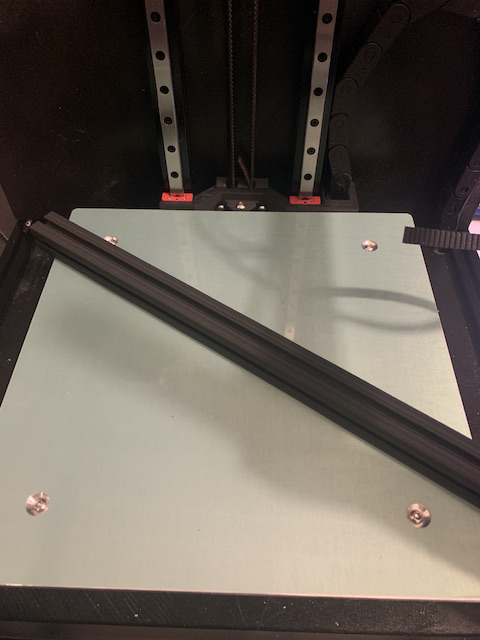

Unfortunatelly 250mm extrusions not enought so its can be printed)

Printed extrusion mounted extrusion

Preloaded nuts on printed extrusion works fine.

Adapted fan holders for Plus50 size

Fans

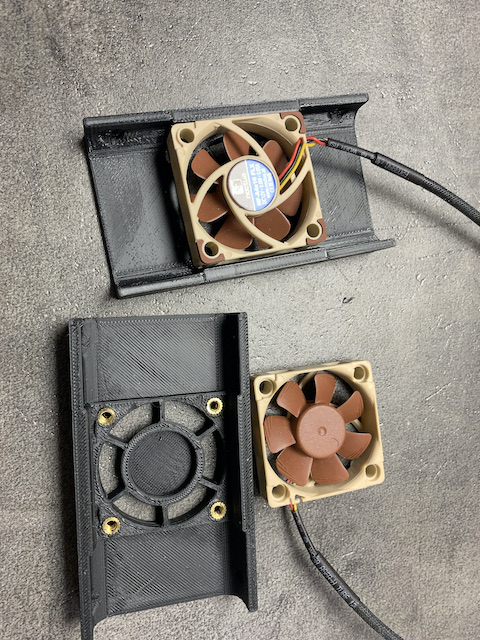

Used silence 40mm Noctua fans and 25mm skirts elements combined with fan holder.

Z belt moved to wheel

Z belt wheel

Changed F623 bearings to the wheel on front Z, since with F623 bearing the belt does not hold well if it is located with teeth inward.

Mount for Fly mini 12864 screen

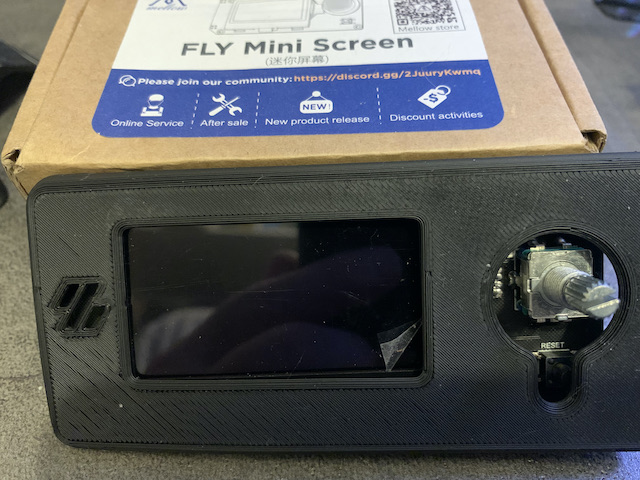

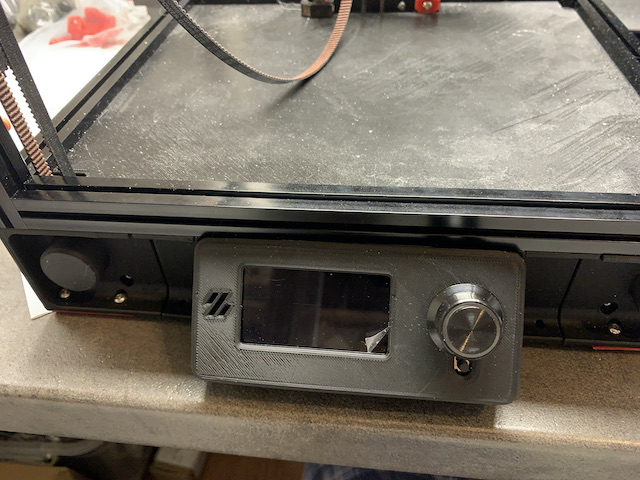

Fly Mini 12864 LCD Fly Mini mounted

Modify back skirt for plus50 size

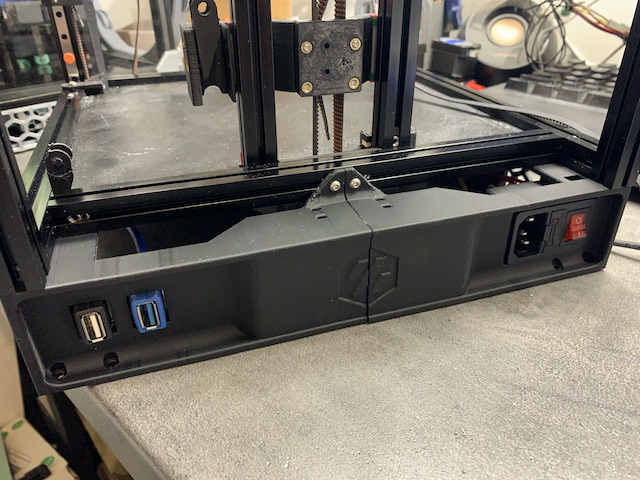

Back skirt Side skirt Back skirt

Added bottom cover

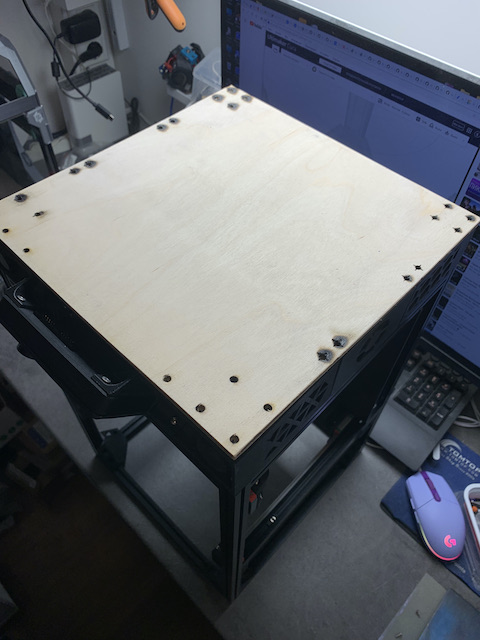

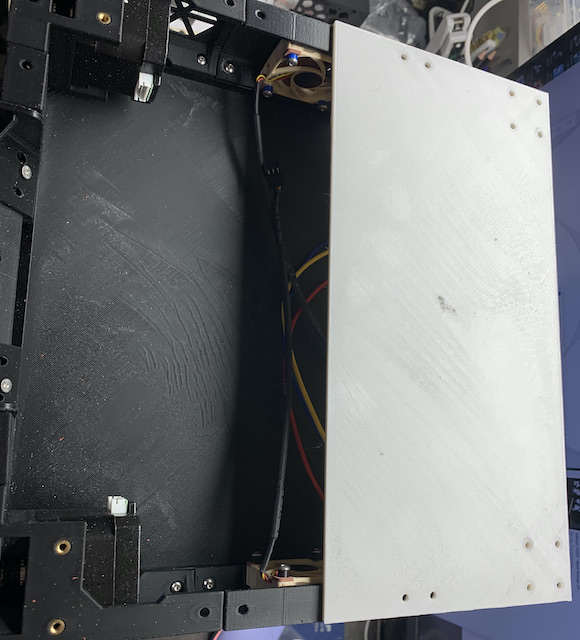

from plywood from plastic

I try plywood (laser cutting) and printed from ABS
