trizero-plus50-mod

A buildlog of Tri-Zero Plus50 project with my little modifications

Based on tri-zero project from zruncho3d.

A/B drives changed to Nema17

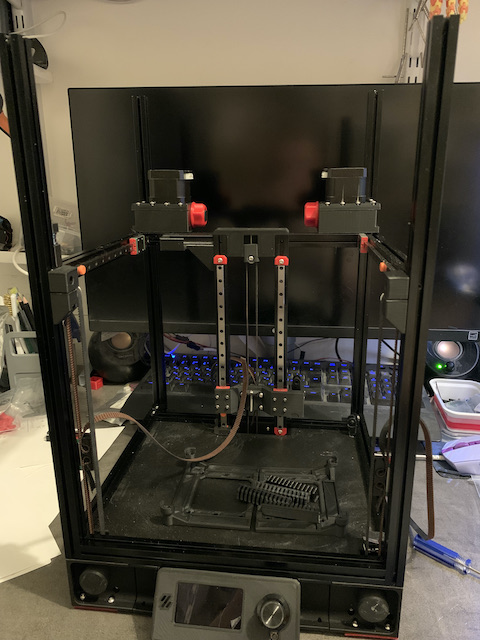

Front view

Thanks @TheMrFish for this mod.

Added hardware endstops to all Z belts

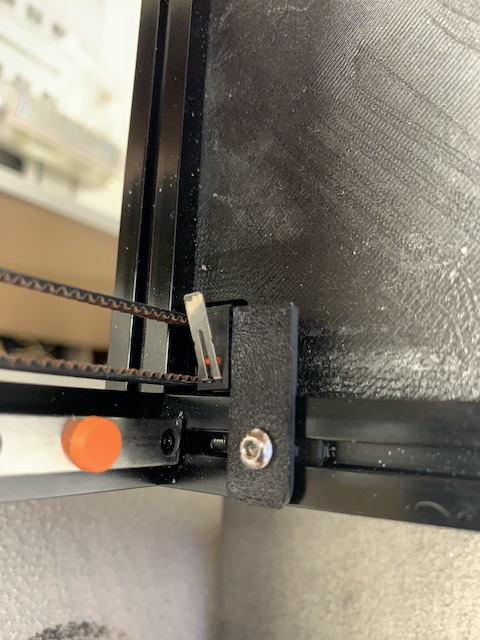

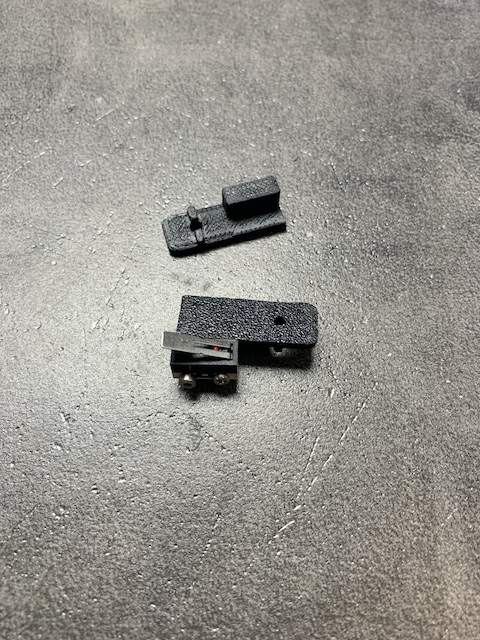

Z endstops Mounted Z endstop

Setup cheap 180x180 hotbed from Maccurat

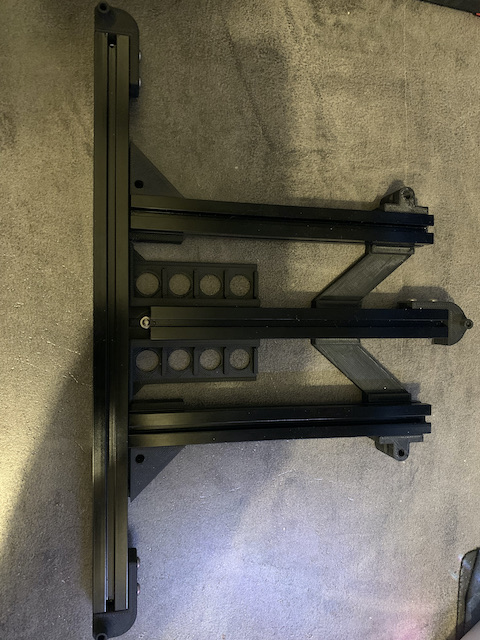

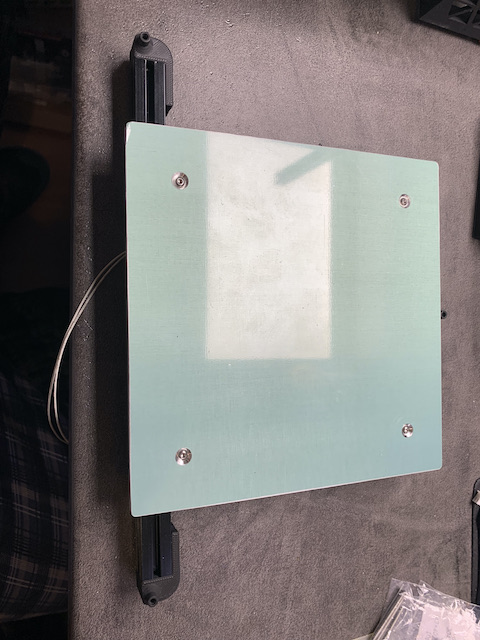

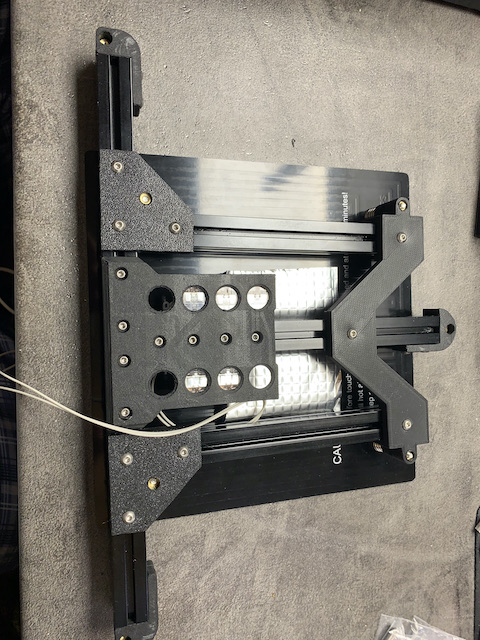

Bed mount Maccurat hotbed Assembled hotbed

Two additional 150mm extrusion need for this mount.

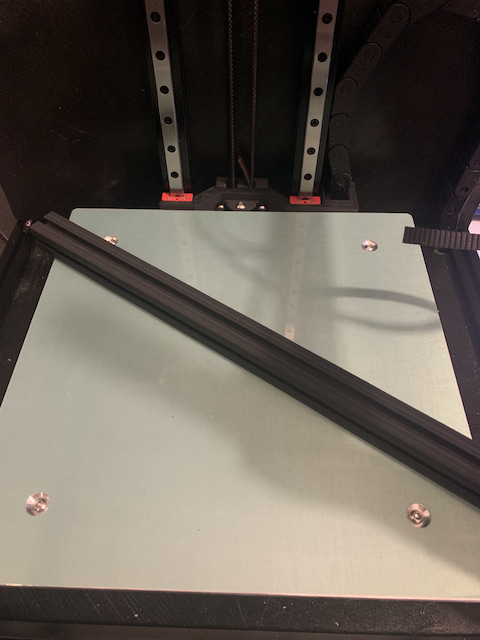

Printed extrusion

Unfortunatelly 250mm extrusions not enought so its can be printed)

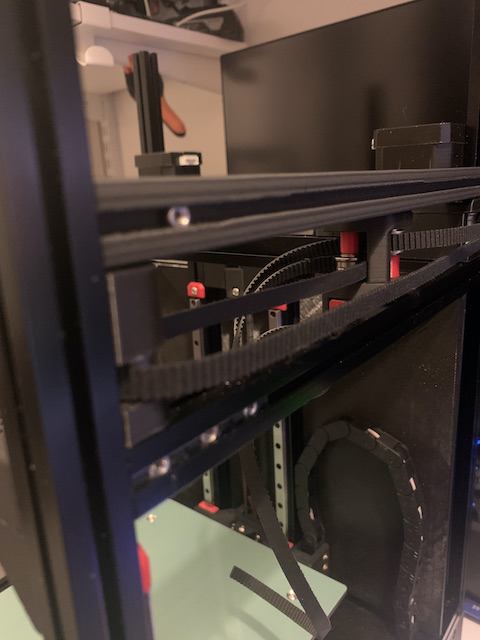

Printed extrusion mounted extrusion

Preloaded nuts on printed extrusion works fine.

Adapted fan holders for Plus50 size

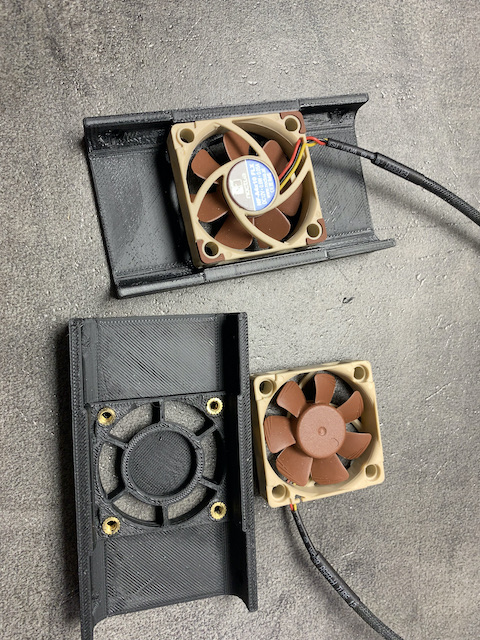

Fans

Used silence 40mm Noctua fans and 25mm skirts elements combined with fan holder.
