README.md

trizero-plus50-mod

A buildlog of Tri-Zero Plus50 project with my little modifications

Based on tri-zero project from zruncho3d.

A/B drives changed to Nema17

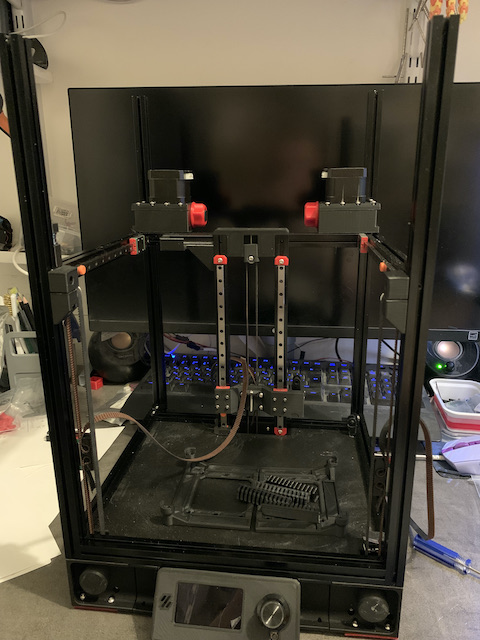

Front view

Thanks @TheMrFish for this mod.

Added hardware endstops to all Z belts

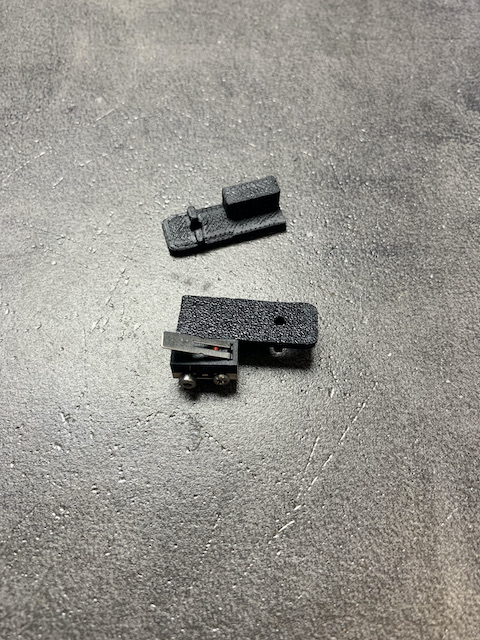

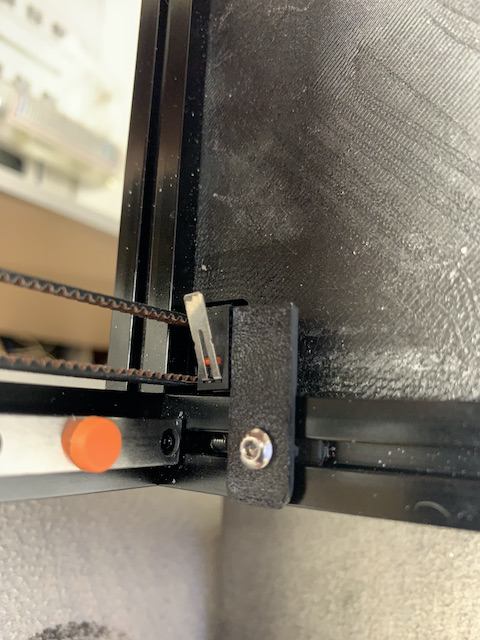

Z endstops Mounted Z endstop

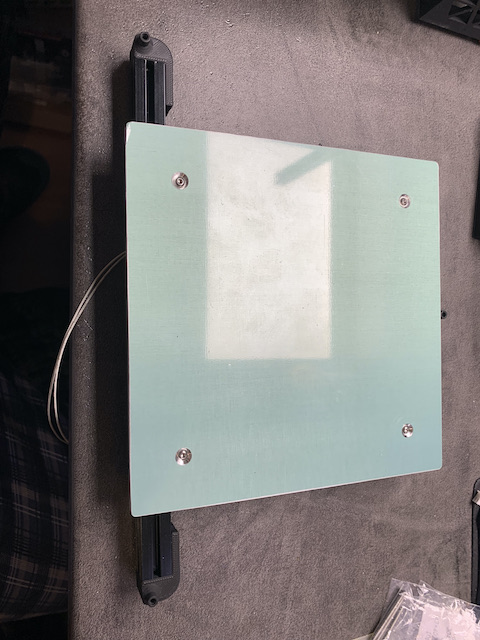

Setup cheap 180x180 hotbed from Maccurat

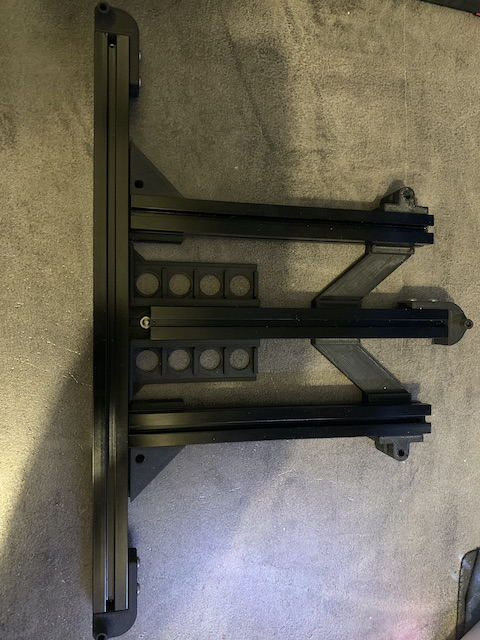

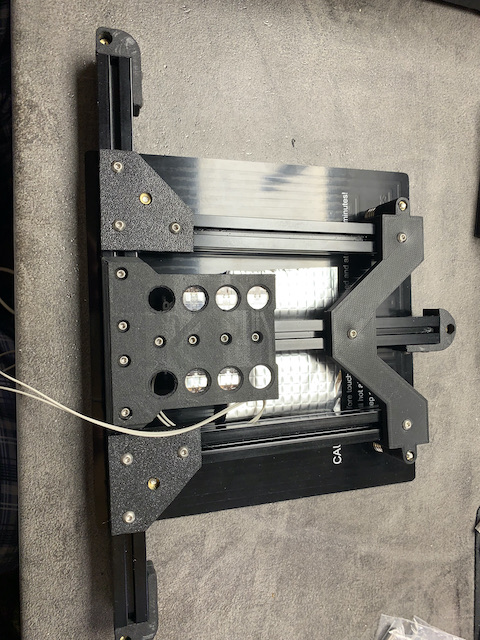

Bed mount Maccurat hotbed Assembled hotbed

Two additional 150mm extrusion need for this mount.

Printed extrusion

Unfortunatelly 250mm extrusions not enought so its can be printed) Printed extrusion mounted extrusion

Preloaded nuts on printed extrusion works fine.
